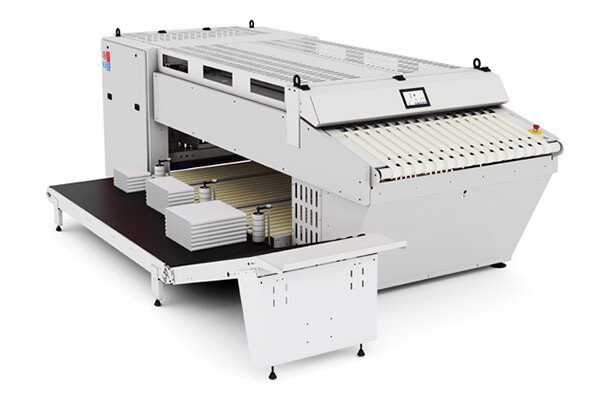

TOWEL FOLDER LIBRA

TOWEL FOLDER Folder designed and built to fold towels of different sizes, from bath mats to beach towels.
Up to 3 criteria for automatic classification of the different sizes of the garments.

LIBRA 1: 1 only clothing size to classify.
LIBRA 2: 2 sizes to size automatically.
LIBRA 3: 3 sizes to size automatically.
LIBRA 4: 4 sizes to size automatically.

Max wide 1,200 mm. (min: 480mm.)
Max width 2,000 mm. (min: 480mm.)
For all types of towels and small garments.
Longitudinal folds: (1/2) - (1/3)
Cross Folds: 2, (1/2) - (1/2) or (1/3)
Lenght folds by air jets
Crossfolds by air jets and rollers
Easy to use
In the automatic version the operator can introduce items
of different dimensions and the machine will separate
them automatically to create 3 different stacks of folded
items, one for each type.
PLC with 20 predefinded programs and 79 configurable.
Control panel with Touch screen.
Lower output to configurable output belt.
Selectable working parameters from the keyboard.
All work functions displayed on the display.
Warning of errors and alarms on keyboard.
Partial and total calculation of production

Easy maintenance
Rubber and cotton transport bands.
Warning malfunctions and alarms on keyboard.
Easy access side and front covers


Options
Push button linen rejection
Different power supply from 400V-III-T 50hz
